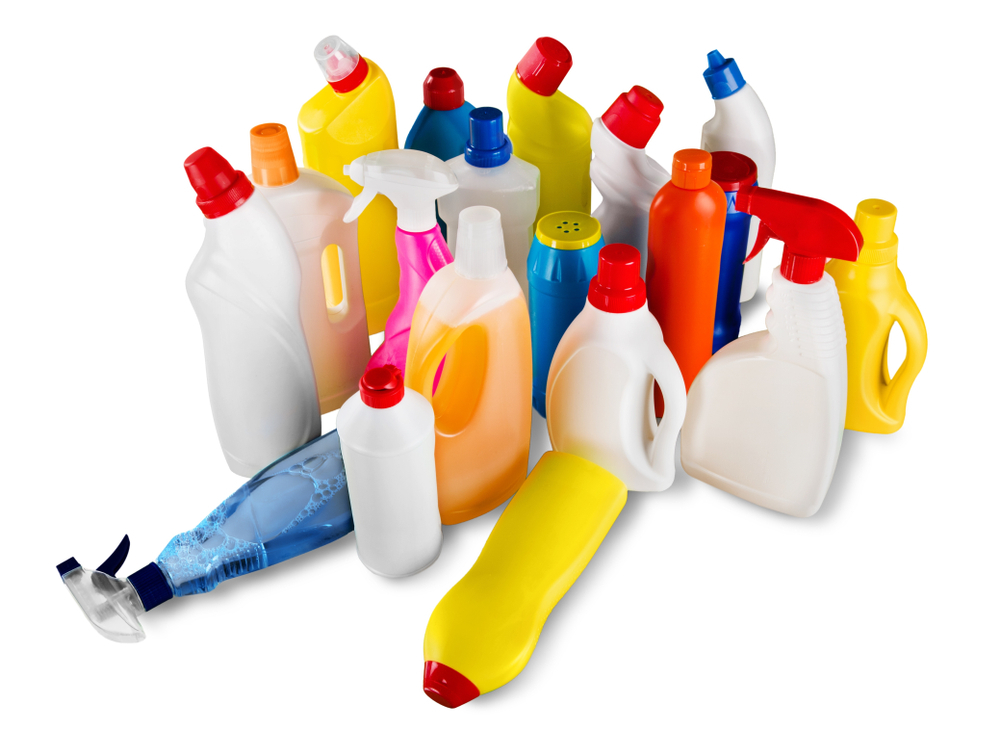

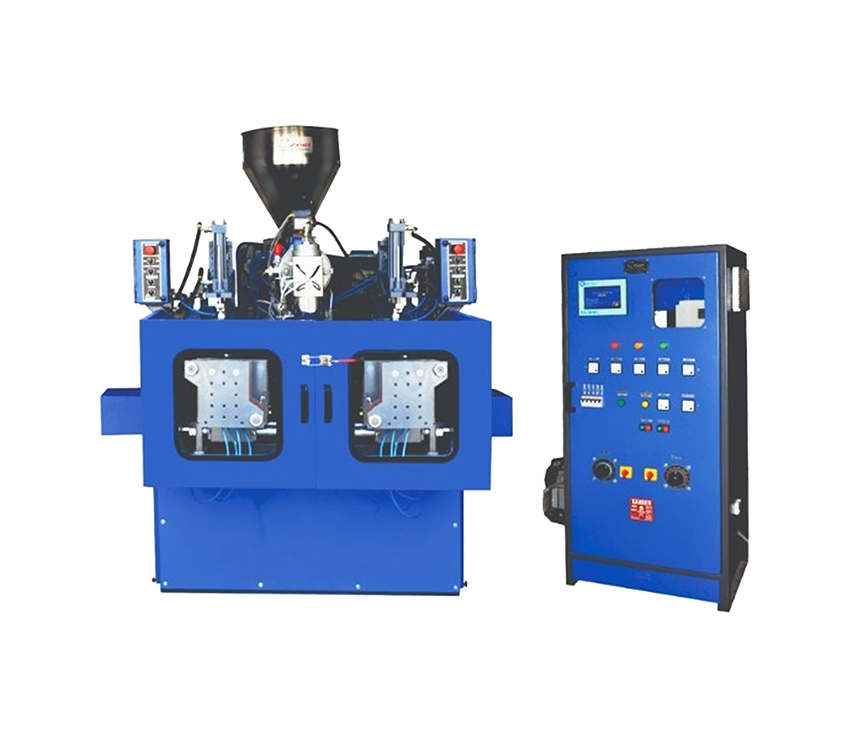

Zeel Plast Machinary Manufacture wide range of blow moulding machine. This unique machines can be used to manufacture 500ml Double Station Plastic Blow Moulding Machine. This machine equipped with unique mould quality and simple operating system. The blow mouding machine available with continuous parison also.


Screw Diameter MM 40
L.D. Ratio L/D 22.1
Blowing Capacity ML 500
Screw Speed RPM 75
Plasticizing Cap. Kg/Hr. 14/16
Heating Zone Nos. 5
Mould Opening Stroke MM 180
Min. Mould Thickness MM 175
Mould Length MM 260
Mould Width MM 160
Dry Cycles/Min. Nos. 14
D Max. Cont. Dia MM 80
Extruder Drive HP 5
Hydraulic Motor HP 3
Heating Load HP 5
Total Power of M/c. HP 13
Hot Wire Cutter - STD
Parison Program - OPT
Angular Blowing System - OPT
Bottom Blowing Systems - OPT
Hydraulic Blowing Systems - OPT
Oil Tank Capacity Ltrs 100
M/c.Dimension (LxWxH) (ft) 5.4 x 3 x 5
Control Panel Dimension (LxWxH) (ft) 1.6 x 1.8 x 4.6
Air Pressure Kg/Sq/Cm 6 to 10
